Italian Spring Accelerometer

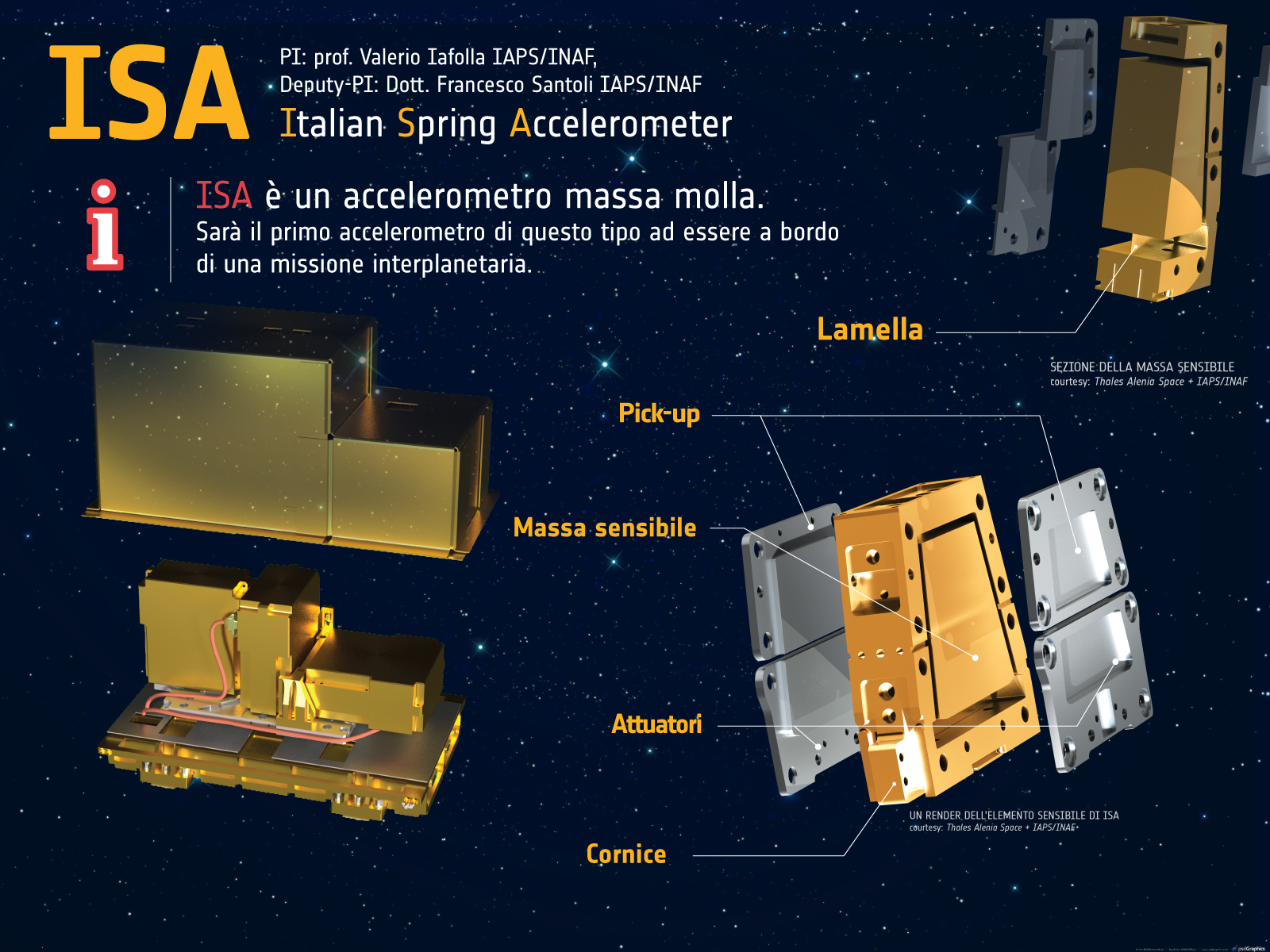

ISA è un accelerometro a tre assi dedicato alla misura dell’accelerazione dell’MPO (Mercury Planetary Orbiter) la cui conoscenza permetterà di sfruttare nel migliore dei modi l’alta qualità dei dati di tracking. Per garantire il raggiungimento degli obbiettivi scientifici dell’RSE ISA dovrà avere un rumore intrinseco non superiore a 1e-9 m/s^2 nella gamma di frequenze da 3e-5 Hz a 1e-1 Hz.

In dettaglio

ISA is a three-axis high sensitivity accelerometer on board the MPO. It will support the study of the planet Mercury and also the test of Einstein's theory of General Relativity (GR) to an unprecedented level of accuracy. To perform such measurements it is necessary to combine data from four different instruments located on the MPO: star tracker, high resolution camera, accelerometer and transponder. The accelerometer will measure all inertial accelerations caused by the incoming solar visible radiation and by the planet albedo acting on the MPO structure, in order to transform it, a–posteriori, into a drag–free satellite.

The scientific objectives of ISA are strongly related to the Radio Science Experiment MORE. Together these experiments can provide information on Mercury's interior structure as well as test Einstein's theory of General Relativity.

The radio science investigation of BepiColombo comprises a complex set of measurements and scientific objectives. Three categories of experiments can be distinguished: a gravimetry experiment, a rotation experiment, and a relativity experiment. The scientific goals are:



  1. study the global gravity field of Mercury and its time variations due to solar tides in order to constrain the internal structure of the plane.
  2. observe the local gravity anomalies in order to constrain the mantle structure of the planet and the interface between mantle and crust.
  3. measure the rotation state of Mercury in order to constrain the size and the physical state of the core of the planet.
  4. study the motion of Mercury centre of mass in order to improve the determination of the parameterised post– newtonian (PPN) parameters of GR.


Principi di funzionamento

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent ut fringilla est. Interdum et malesuada fames ac ante ipsum primis in faucibus. Vivamus iaculis vehicula massa, eu auctor neque tempor vel. Donec sodales ullamcorper urna, at placerat tortor tincidunt a. Duis pretium magna vitae nisl tincidunt semper. In hendrerit luctus cursus. Aliquam malesuada vulputate ultricies. Etiam aliquam nunc metus, ut dignissim metus imperdiet ut. Donec dapibus ut magna in vestibulum. Pellentesque aliquet hendrerit tortor, pulvinar pulvinar sem fringilla a. Suspendisse aliquet, dui vitae vulputate vestibulum, felis leo congue felis, id mattis orci nibh eu diam. Nam efficitur risus nec massa maximus sollicitudin. Aliquam posuere et eros vitae vehicula. Ut ut magna lorem. Nunc libero elit, euismod tempor sem ut, ornare lobortis ex. Quisque sodales, libero ut mattis blandit, elit urna dignissim elit, dapibus mattis lectus mi at ex.

Vestibulum vel ex nec eros tristique porta id ac lectus. Nullam gravida venenatis risus et consequat. Sed maximus nisl in lorem feugiat, quis laoreet lacus pulvinar. Nulla rutrum laoreet justo. Curabitur fringilla eu erat pulvinar fringilla. Aliquam ac vulputate enim. Ut in turpis et ante porttitor sollicitudin.

Vivamus finibus neque arcu, sit amet semper libero molestie vitae. Cras ultrices ante augue, eu commodo sem imperdiet vitae. Ut ultricies metus est, id dapibus magna porta eget. Etiam rhoncus urna vel massa pellentesque, vel egestas nisi molestie. Vivamus ultricies, diam in commodo tempor, dui massa ultrices risus, nec sagittis magna nisi ac nisi. Donec mattis tempus nunc cursus volutpat. In sit amet semper libero, vitae auctor arcu. Mauris congue tortor augue, sed euismod urna feugiat quis.

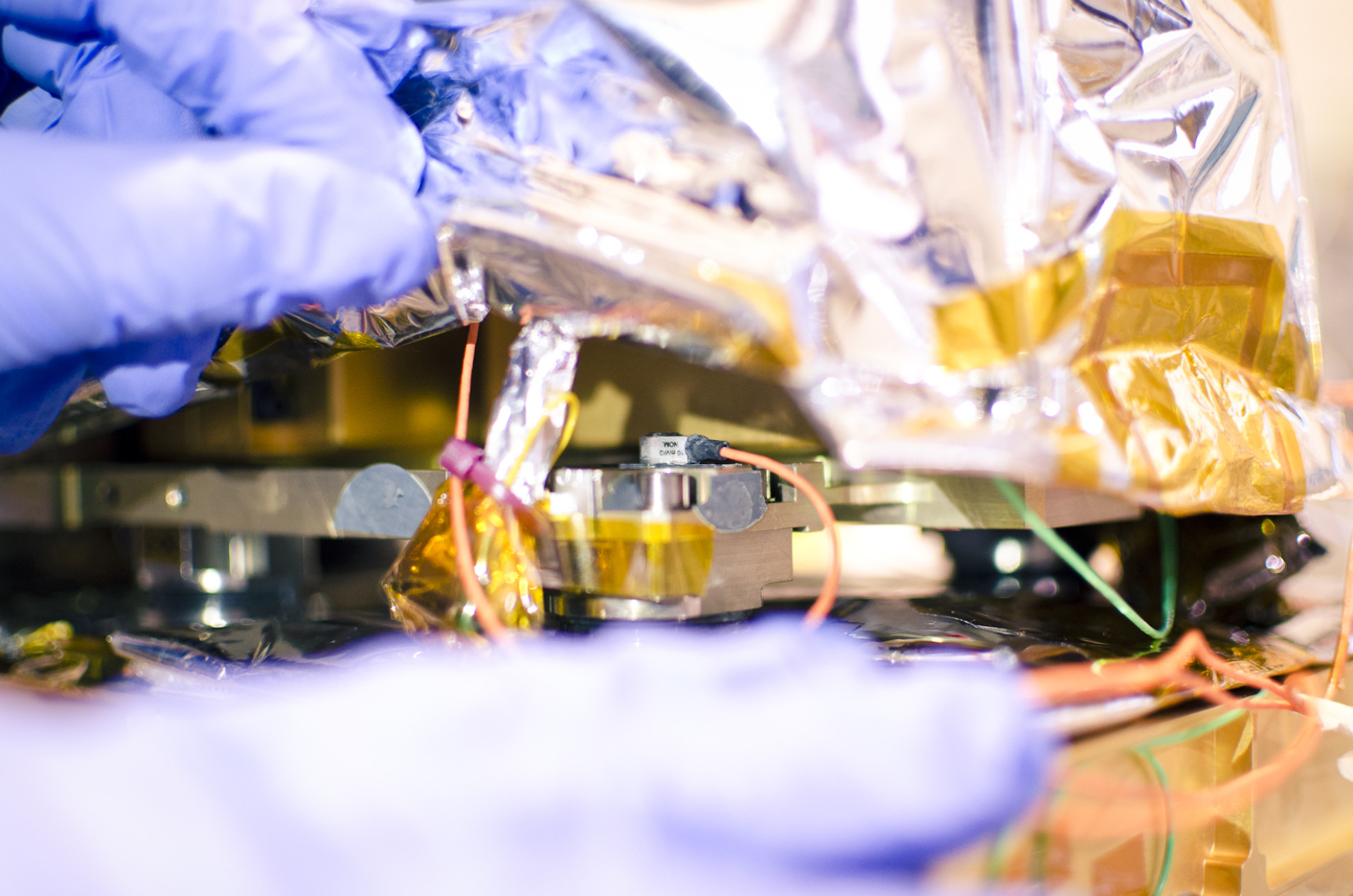

ISA durante i test

ISA durante i test

ISA durante i test i calibrazione

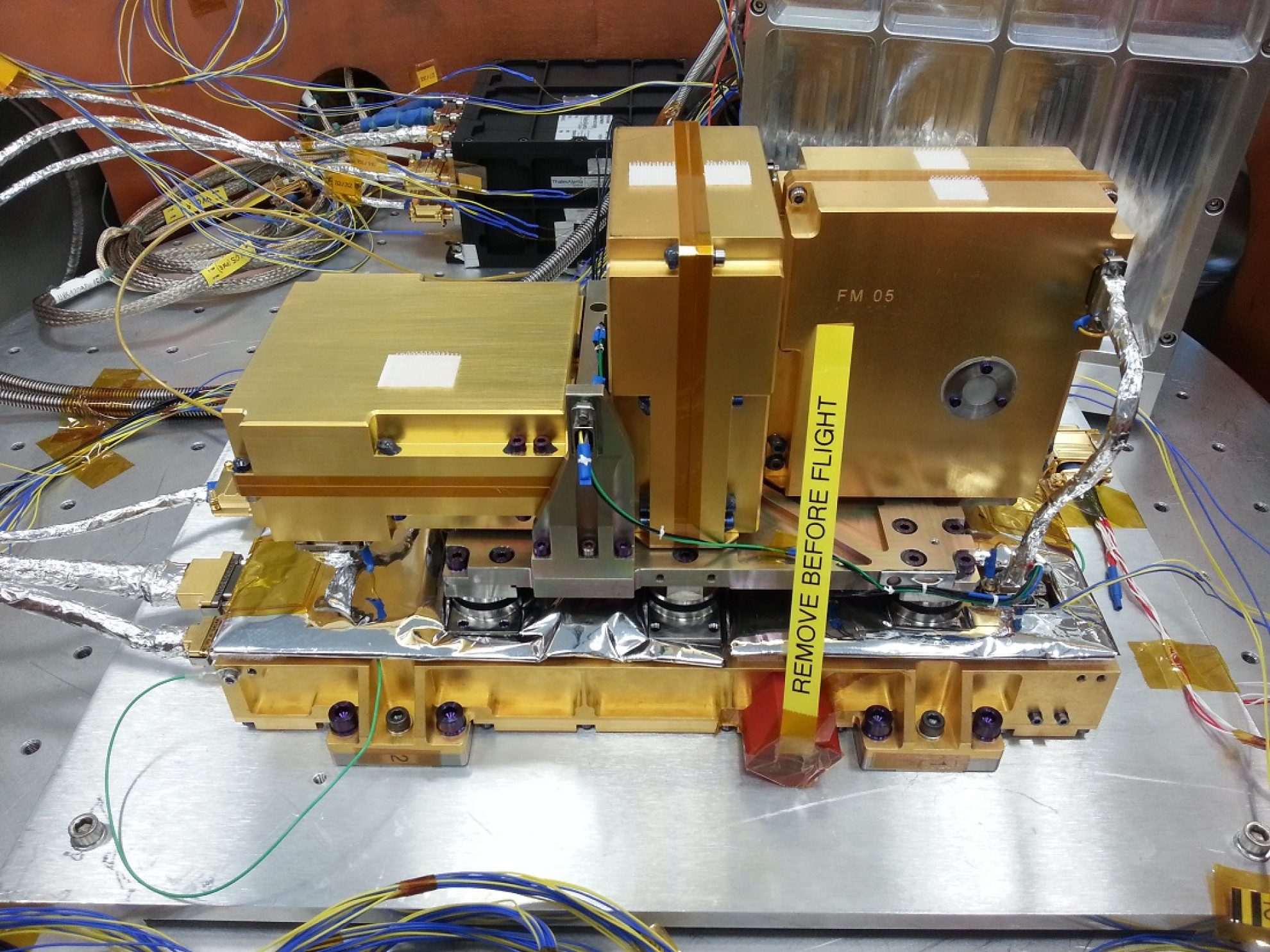

ISA Flight Model

ISA Flight Model

ISA Flight Model poco prima dell'integrazione su BepiColombo

Risultati

Suspendisse sit amet faucibus nunc. Integer posuere molestie dignissim. Vivamus dapibus condimentum nisi, sed tempor velit luctus ac. Nam ac fringilla ante. Nunc non enim elementum, consequat ex nec, cursus nunc. Aliquam tristique ex at dui tristique, at sollicitudin urna ullamcorper. Quisque tempus egestas porttitor. Sed sollicitudin finibus arcu in semper. Vestibulum velit risus, tincidunt id maximus sit amet, ornare eget lectus. Nullam rutrum lacinia ante mollis commodo. Pellentesque bibendum justo eget augue lobortis, eu scelerisque arcu interdum. Donec hendrerit nisi id tempus pretium.

  • Nec, cursus nunc. Aliquam tristique ex at dui tristique.
  • Amet faucibus nunc. Integer posuere molestie dignissim. Vivamus dapibus
